1'' Aluminum Diaphragm Pump Double Diaphragm Pump With Santoprene Membranes
| Brand Name | RD |
|---|
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| High Light | 1'' Aluminum Diaphragm Pump,Aluminum Alloy Double Diaphragm Pump,Santoprene Membranes aluminium diaphragm pump |
||
|---|---|---|---|
Product Description

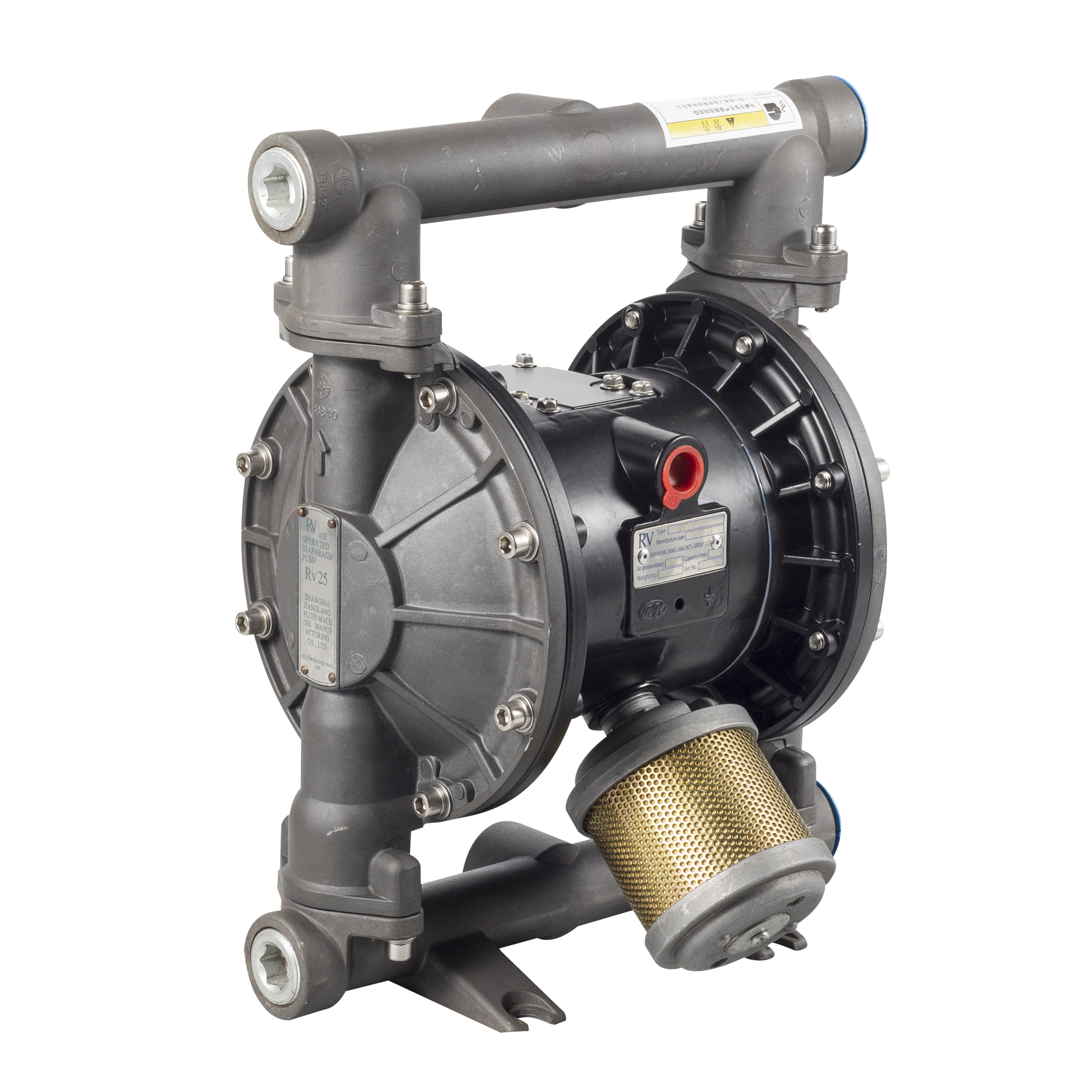

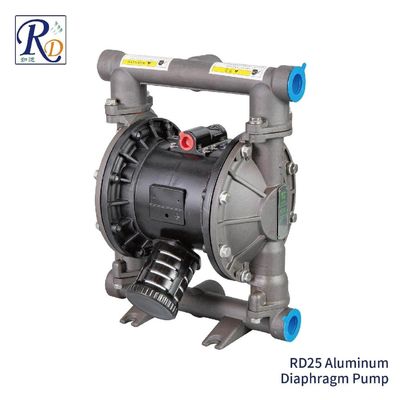

1'' Aluminum Alloy Double Diaphragm Pump With Santoprene Membranes
ADVANTAGES OF ALUMINUM PUMPS
RD Aluminum diaphragm pumps provide stall-free, ice-free operation. The secret is a great design that comes equipped with unique air valves that offer energy savings and greater flow rates when compared to other air operated diaphragm pump technologies.
Additionally, for increased reliability, the RD air operated diaphragm pump has been designed with increased suction lifts and fewer moving parts.
PARAMETER
| Place of Origin | Shanghai, China |
| Power Source | Pneumtic |
| Structure | Air Driven Diaphragm Pump |
| Power Driven | Compressed air |
| Max Permitted Grain | 0.16 in(4mm) |
| Certification | CE, ISO: 9001 |
| Air Inlet Size | 1/2 in.npt(f) |
| Wetted End | Aluminum |
| Fluid Inlet Size | 1 in. |
| Fluid Outlet Size | 1 in. |
| Installation | 340×230×440mm |
ALUMINUM DIAPHRAGM PUMPS SELECTION:
The air driven diaphragm pumps offers many materials of construction,such as aluminum, stainless steel ,pp, pvdf ,etc. All pumps are available with imported diaphragm,ball and ball seat materials offering long product life and reduced maintenance.OEM/ODM are available, products can be customized according to your requirements.
Performance Introduction:
RD Aluminum diaphragm pump can not only pump fluid liquids and day powders, but also some mediums that usually hard to flow. It possesses the advantages of self-priming pump, submerged pump, shielding pump, slurry pump, impurity pump and other transportation machines.
1. No need to pilot water, suction lift up to 7m, pump head up to 80m, outlet pressure ≥ 0.8 MPa.
2. Spacious flowing way with good through-pass performance, the largest size of particles allowed can be up to 9.4mm. While pumping slurry and impurity, the abrasion is very low.
3. The pump head and capacity can be adjusted via the pressure of air source (between 0.1~0.84 MPa).
4. Temperature range of working environment: 5～65℃
FAQ
Q1. Can I have a sample order for air operated diaphragm pump?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing ,8-10 working days for mass production.
Q3. Do you have any MOQ limit for air operated diaphragm order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for air diaphragm pump?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
