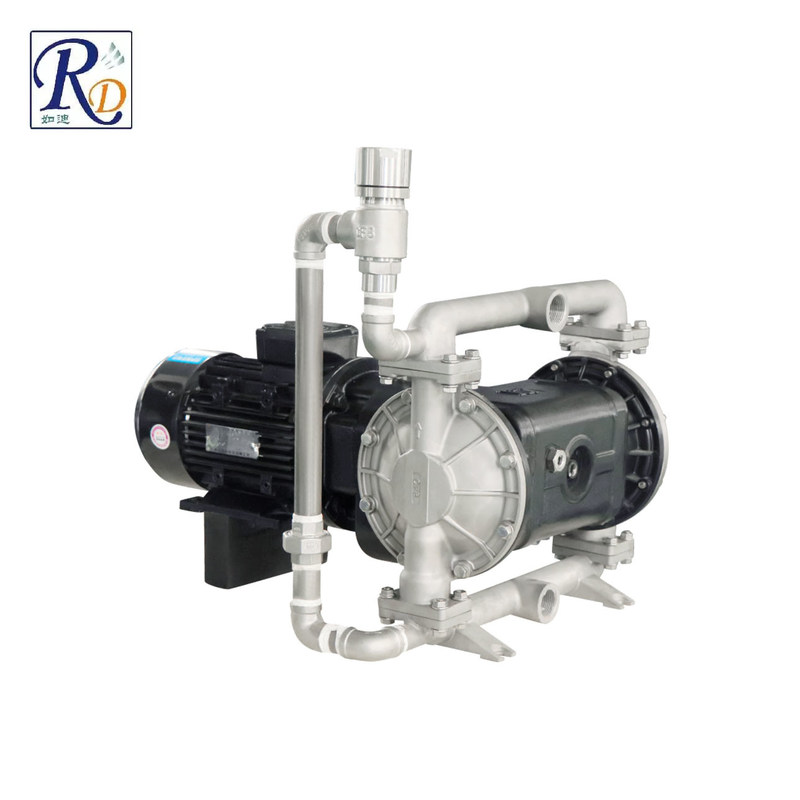

Stainless Steel Motor Diaphragm Pump,
Stainless Steel Electric Diaphragm Pump,
Electric Motor Diaphragm Pump
RDE New Design Electric Diaphragm Pump:
1. Diaphragm pump moving system and reducer components are installed in the same box.
2. The output shaft of reducer can function simultaneously as input shaft of back-and-forth motion, thereby to get a compact structure.
3. The installation datum is uniformly set on the shell; the motor and the shell are connected by flange
4. Larger motion chamber for more storage of lubricating oil, which is better for heat radiation
5. Back-and -forth motion is supported by linear bearing, to get less friction resistance and easier replacement.
6. Inner placed ventilation pipe help better air changeover between diaphragm and inner splint.
