RD06 Mini Plastic Diaphragm Pump Spring Style Non Return Valve

Brand Name RD

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Leave a Message
Product Description

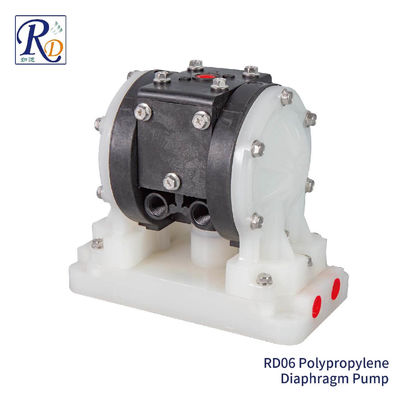

RD06 Mini Plastic Diaphragm Pump Spring Style Non Return Valve
Plastic Diaphragm Pump Features:

  • Compact Design
  • 360° Mounting Versatility when using optional flex checks
  • Ideal for OEM Applications
The Plastic diaphragm pump provides tremendous system flexibility as well as:
  • Dual-threaded manifolds that are threaded both internally and externally
  • Horizontal Suction and Vertical Discharge center porting with Optional Horizontal Side ports
  • An integrated muffler, making it one of the quietest and most compact pumps in its class


Max Working Pressure100 psi(0.7Mpa, 7bar)
Max Flow Rate5.0 gpm(19lpm)
Max Reciprocating Speed320 cpm
Max Suction Height (Dry Sucking)3m
Max Permitted Grain0.06 in(1.5mm)
Max Air Consumption7.0scfm(3.5L/s)
Air Inlet Size1/4 in.npt(f)
Air Outlet Size1/4 in.npt(f)
Fluid Inlet Size1/4 in.
Fluid Outlet Size1/4 in.
Net WeightPP pump 1.1kg; PVDF pump 1.5kg

RD06 Mini Plastic Diaphragm Pump Spring Style Non Return Valve 0
Packing & Shipping:
RD06 Mini Plastic Diaphragm Pump Spring Style Non Return Valve 1RD06 Mini Plastic Diaphragm Pump Spring Style Non Return Valve 2
Company Information:
Shanghai Rudi Fluid Conveyor Co.,Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in the mainland of China.
Shanghai Rudi has been awarded as High-Tech Enterprise and Credit Company title in consecutive years
We have strong capability of design, innovation, precision production and tight cooperation with Shanghai universities.
The mainly products are air operated diaphragm pumps and control valves, including: Air Operated Diaphragm Pump, Electric Diaphragm Pump, Piston Pump, Powder Pump, Sanitary Pump, Air Operated Diaphragm Pump with Leakage Detector Controller, Pneumatic Diaphragm Regulating Valve, Control Valve, Sequencing Valve and so on products.
Air Operated Diaphragm Pump and Control Valves have been granted more than 40 patents, including 10 invention patents.
Shanghai Rudi participated in setting norms and standards for technical specification for air operated diaphragm pumps in petrochemical industry, according to the national standard No.: SH/T 3191-2017.
Besides, Shanghai Rudi btains necessary certificates such as TS.A National Manufacturing License, CE, ATex, ISO9001, SGS and so on certificates.
RD06 Mini Plastic Diaphragm Pump Spring Style Non Return Valve 3


Polypropylene Material used for air motor, wetted body parts, seats & balls

• Wide chemical compatibility
• General purpose
• Inexpensive alternative


1. Q: What is MOQ?
A: 1pc for regular product. Samples are available and sample cost can be deducted from future orders.
2. Q: What's the payment?
A: D/P, T/T, Western Union , please confirm with us with exact order.
3. Q: What is the delivery time for air diaphragm pump?
A: Depend on the quantity.
4. Q: What about package for air diaphragm pump?
A: Cartons with foam inside & wooden case.
5. Q: How are the products delivered to us?
A: By International express.
6. Q: How long is the warranty for air diaphragm pump?
A: 1 year warranty. (except wearing parts)
7. Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
