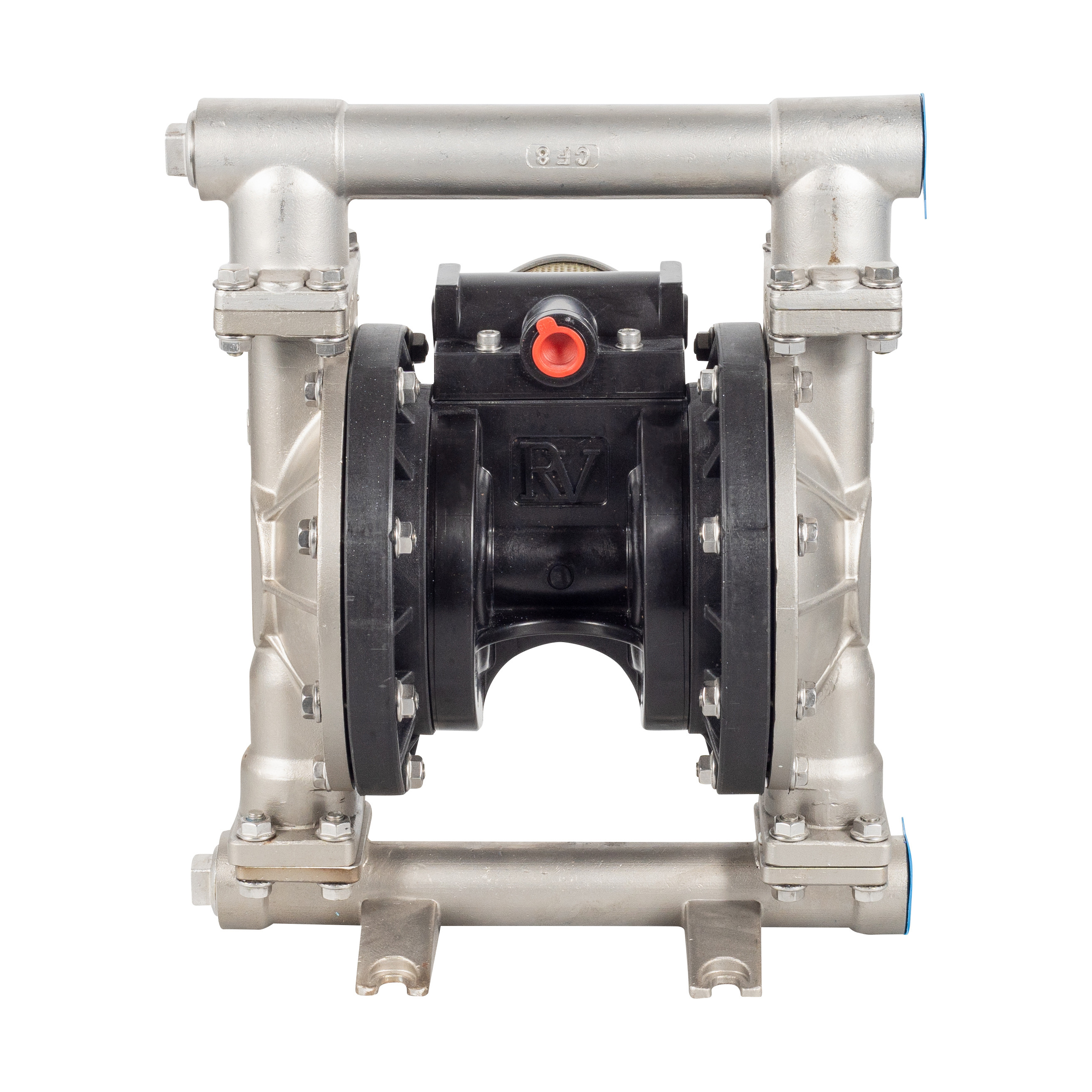

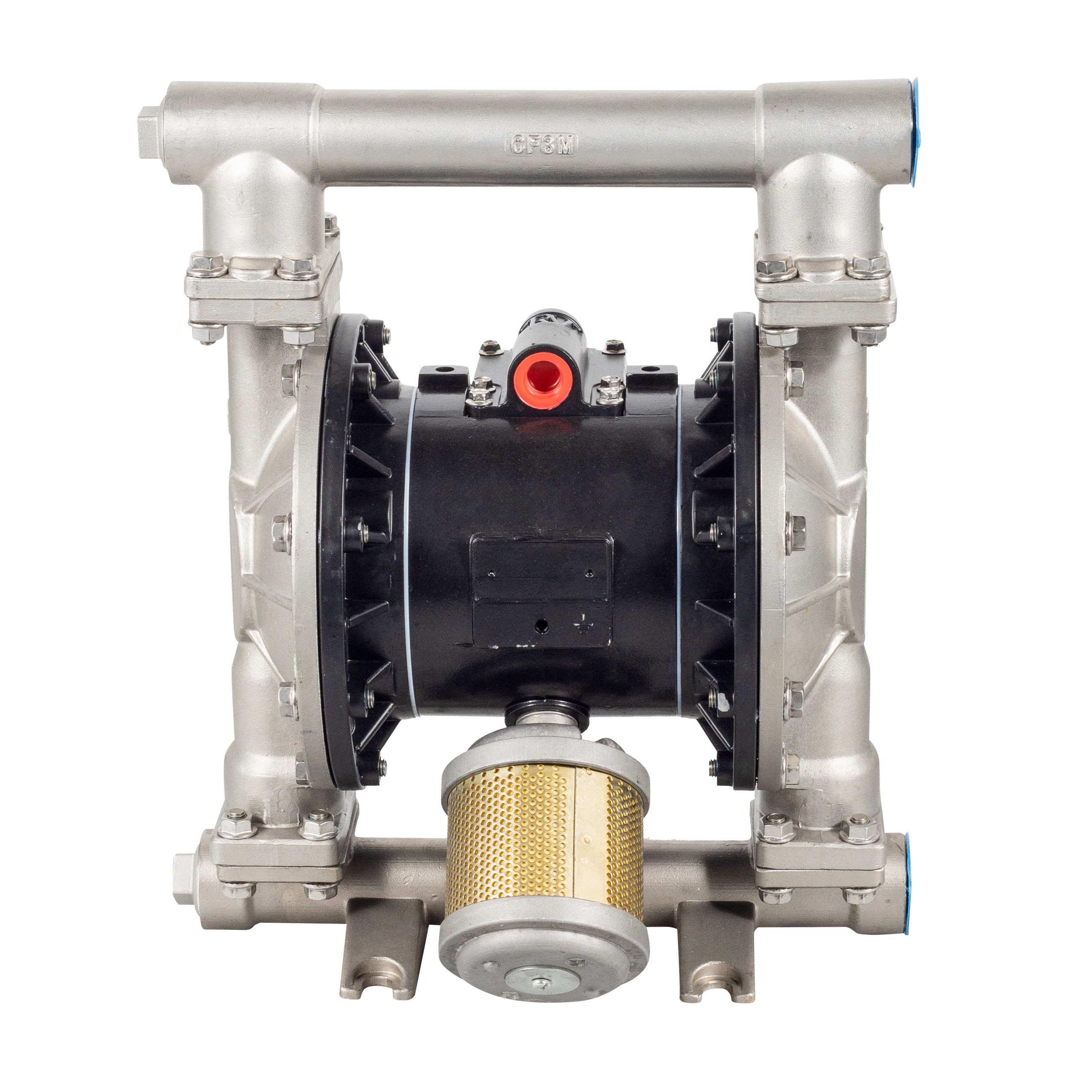

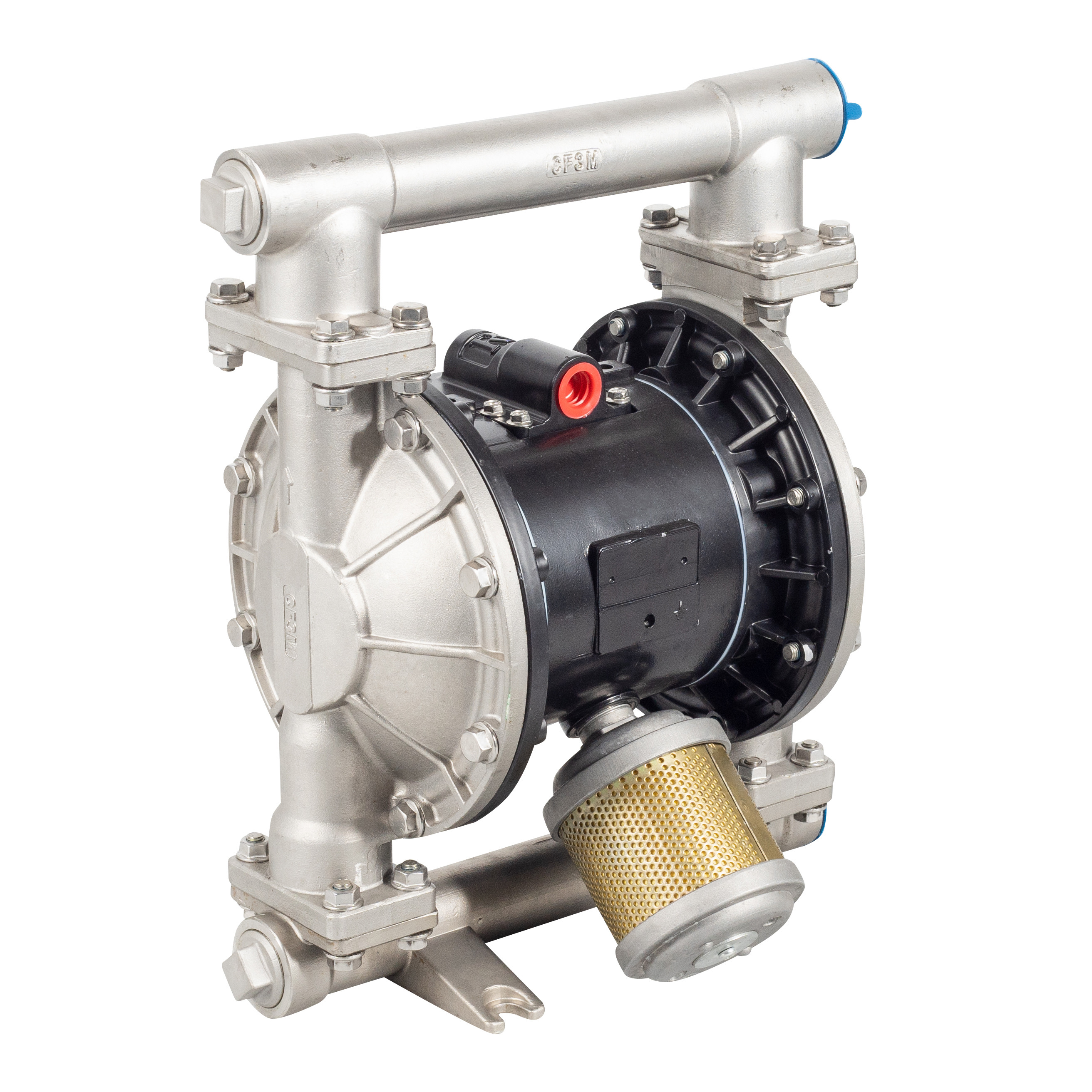

1 inch Stainless Steel Diaphragm Pump For Strong Acid Transfer
Stainless Steel Diaphragm Pump Advantages:
- Idling ,Self-priming , Submerse capability.
- Provide stall-free, ice-free zero leak operation.
- Epoxy-coated air section for tough environmental conditions.
- Low shear force , not easy to damage the material structure.
- Bolt joint design provides even sealing pressure for optimal performance
- Modular air valve,low pulsation operation,providing smooth and rapid changeover.
- No electricity . It's safe and realiable while using in the flammable and explor place .
- Diversity of material,no rotating parts,applicable to various erosive situations.
- Can pump corrosive , volatile, flammable, poisonous fluids with particles and high viscosity.
- Delivery lift and flow can pass the pneumatic valve open to realize the stepless adjustment.
|Max Discharge Pressure||120 psi ( 0.84Mpa, 8.4bar )|
|Max Capacity||40 gpm ( 568pm )|
|Max Reciprocating Speed||276cpm|
|Max Permitted Grain||5m|
|Air Inlet Size||1/2 in.npt (f)|
|Air Outlet Size||3/4 in.npt (f)|
|Fluid Inlet Size||1inch|
|Fluid Outlet Size||1ich|
Stainless Steel Diaphragm Pump Application
The air operated diaphragm pumps use compressed air as power source, and it is the most advanced type of air operated diaphragm pumps in market for the moment. It adopts three-way air pilot valve to achieve real no dead stop and faster reversing. It is widely applied in waste water treatment, chemical industry, petrochemical industry, painting, ceramics, environmental protection, printing and dyeing, etc. to deal with all kinds of corrosive, volatile, flammable, poisonous fluids with particles and high viscosity.
