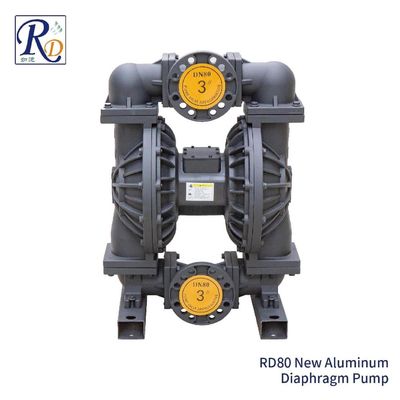

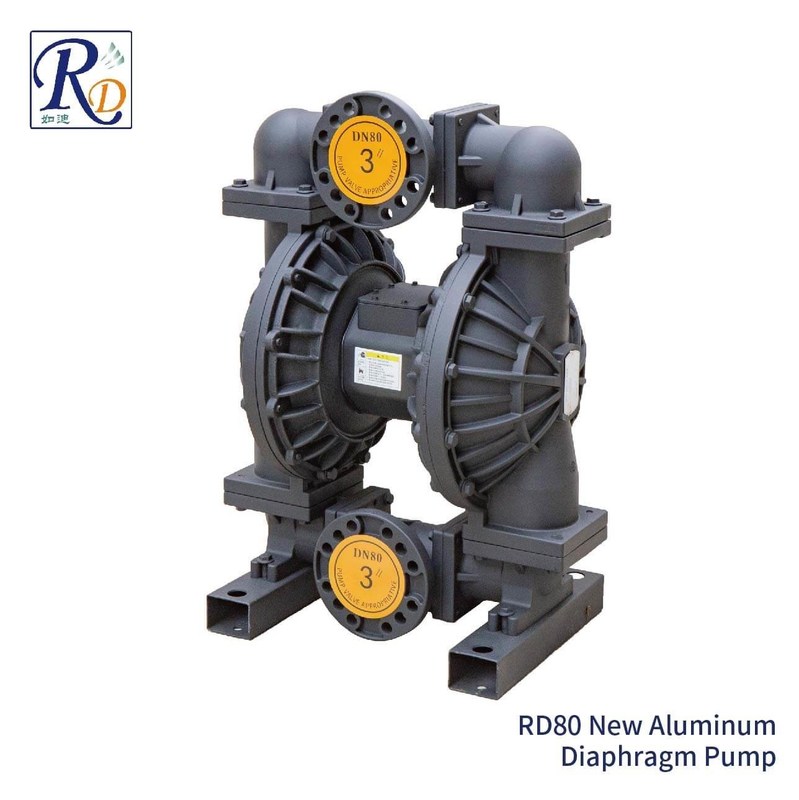

Body Aluminum Diaphragm Pump AODD Pump Inlet / Outlet 3" 1022 Lpm

Brand Name RD

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
High Light

AODD Pump 3"

,

1022 Lpm air operated double diaphragm pump

,

Body Aluminum AODD Pump

Leave a Message
Product Description

Body aluminum diaphragm pump inlet/outlet 3" 1022 lpm

Air Operated Diaphragm Pump Features:

1. Because it is using air as power, the pneumatic diaphragm pump does not heat and produce sparks; suitable for use in flammable and
explosive environment.
2. Use santoprene diaphragm, can be used for wastewater properties relatively.
3. Pneumatic Diaphragm Pump can pump particle liquid;
4. The liquid can be conveyed by diaphragm pump is wide, the viscosity from low to high, from corrosive liquid to viscous liquid
.



Max Working Pressure 120 psi(0.84Mpa, 8.4bar)
Max Flow Rate 270 gpm ( 1022lpm )
Max Reciprocating Speed 135 cpm
Max Suction Height (Dry Sucking) 5m
Max Permitted Grain 0.37 in ( 9.4mm)
Max Air Consumption 180scfm(90L/s)
Air Inlet Size 3/4 in.npt(f)
Air Outlet Size 1 in.npt(f)
Fluid Inlet Size 3 in.
Fluid Outlet Size 3 in.
Net Weight 66kg



Exterior dimension drawing



Body Aluminum Diaphragm Pump AODD Pump Inlet / Outlet 3" 1022 Lpm 0



Display


Body Aluminum Diaphragm Pump AODD Pump Inlet / Outlet 3" 1022 Lpm 1



Packing & Shipping:


Body Aluminum Diaphragm Pump AODD Pump Inlet / Outlet 3" 1022 Lpm 2Body Aluminum Diaphragm Pump AODD Pump Inlet / Outlet 3" 1022 Lpm 3




Company Introduction:



Jianglang Technology Co., Ltd offers the latest technology in air diaphragm pump.

Pneumatic diaphragm pumps are positive displacement reciprocating pumps that can be used in multiple fluid-transfer applications, and thanks to an unique design characteristics, pneumatic diaphragm pumps are ideally suited for applications that require a robust, plug-and play, and easy-to maintain pump.

Jianglang Technology Co., Ltd is a professional enterprise involved in manufacturing and marketing the best quality pneumatic diaphragm pumps, electric diaphragm pumps for a wide range customers.

Jianglang Technology Co., Ltd headquartered in Shanghai, China with 2 production plants and branches.


Body Aluminum Diaphragm Pump AODD Pump Inlet / Outlet 3" 1022 Lpm 4Body Aluminum Diaphragm Pump AODD Pump Inlet / Outlet 3" 1022 Lpm 5

Installation
Be sure the mounting can support the weight of the pneumatic diaphragm pump, hoses, and accessories, as well as the stress during operation progress.

During installation, make sure that the pneumatic diaphragm pump has been fixed with bolts on the mounting feet.

In order to facilitate the operation and maintenance, the maintenance space should be enough during installing the air diaphragm pump.

While fastening the pneumatic diaphragm pump, rubber pad can be padded to reduce the noise and vibration during operation.
