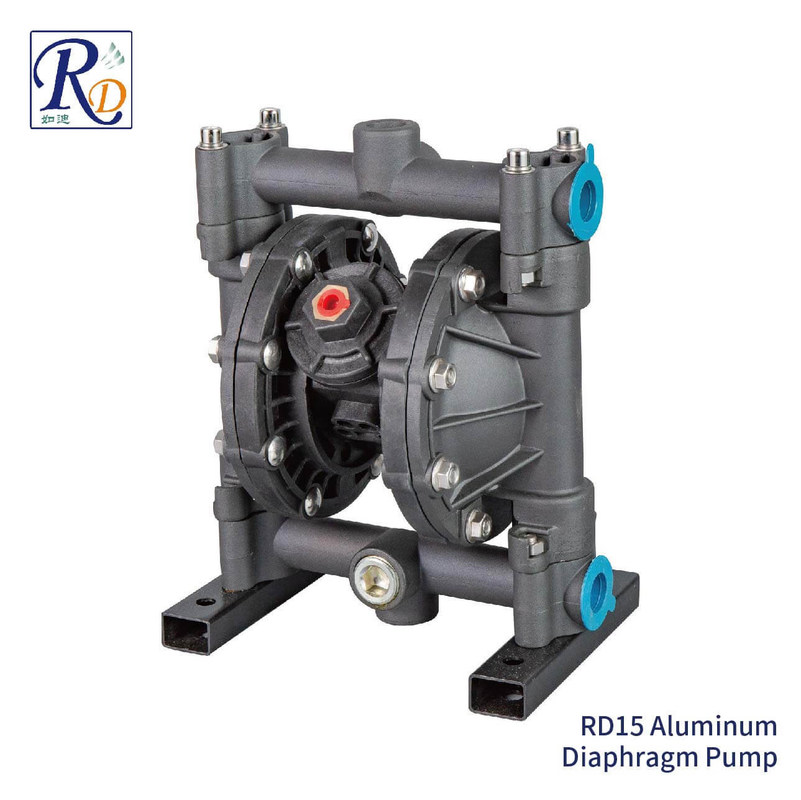

Pneumatic Aluminum Diaphragm Pump Replacement 1/2" Low Flow Low Pressure

Brand Name RD

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
High Light

Aluminum AODD Pump

,

Pneumatic aodd diaphragm pump

,

AODD Pump 1/2"

Leave a Message
Product Description

Pneumatic Aluminum Diaphragm Pump Replacement 1/2" Low Flow Low Pressure



How does a Aluminum diaphragm pump work?



The compressed air is shifted from one chamber to the other by a linked shaft that allows the chambers to move simultaneously. This back-and-forth motion forces liquid out of one chamber and into the discharge piping while the other chamber is being filled with liquid at the same time.



Outline Dimension Drawing

Pneumatic Aluminum Diaphragm Pump Replacement 1/2" Low Flow Low Pressure 0



Max Discharge Pressure 100 psi ( 0.7Mpa, 7bar )
Max Capacity 15 gpm ( 57lpm )
Max Reciprocating Speed 400 cpm
Power Pnuematic
Max Permitted Grain 3/32 in ( 2.5mm )
Advantages: Explosion-proof
Air Inlet Size 1/4 in.npt (f)
Air Outlet Size 3/8 in.npt (f)
Fluid Inlet Size 1/2 in.
Fluid Outlet Size 1/2 in.
Net Weight 4.6kg






Pneumatic Aluminum Diaphragm Pump Replacement 1/2" Low Flow Low Pressure 1





Packing & Shipping:



Pneumatic Aluminum Diaphragm Pump Replacement 1/2" Low Flow Low Pressure 2



Company Introduction:
Jiangliang Technology Co.,Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in the mainland of China.
Jianglang has been awarded as High-Tech Enterprise and Credit Company title in consecutive years
We have strong capability of design, innovation, precision production and tight cooperation with Shanghai universities



Pneumatic Aluminum Diaphragm Pump Replacement 1/2" Low Flow Low Pressure 3Pneumatic Aluminum Diaphragm Pump Replacement 1/2" Low Flow Low Pressure 4



Industrial and Chemical


The selection of available housing and elastomer materials make our pumps adaptable for most highly aggressive or corrosive media. RV pumps’outstanding chemical resistance and robust design contribute to a reliable and safe operation.



FAQ

1. Q: Are you a factory or trading company?

A: We are a factory.



2. Q: What're your payments ?

A: T/T,Western Union,L/C etc.



3. Q: What about the package ?

A: Standard export plywood case or carton.



4. Q: How long is the warranty ?

A: According to international standards, products in standard operation is 1 year,except wearable parts.



5. Q: The use of air diaphragm pump have?

A: air diaphragm pump can suck the peanut, pickles, tomato slurry, red sausage, chocolate, hops and syrup etc.

Air diaphragm pump can suck the paint, pigment, glue and adhesive etc.

Air diaphragm pump can suck various glazed slurries of tile, porcelain, brick and chinaware etc.

Air diaphragm pump can suck various toxin and flammable or volatility liquid etc.

Air diaphragm pump can suck various strong acid, alkali and corrosive liquid etc.



6. Q: How air diaphragm pump quality and service?

A: Our air diaphragm pump have CE certificate, quality assured, can accept OEM, provide various personalized needs.
