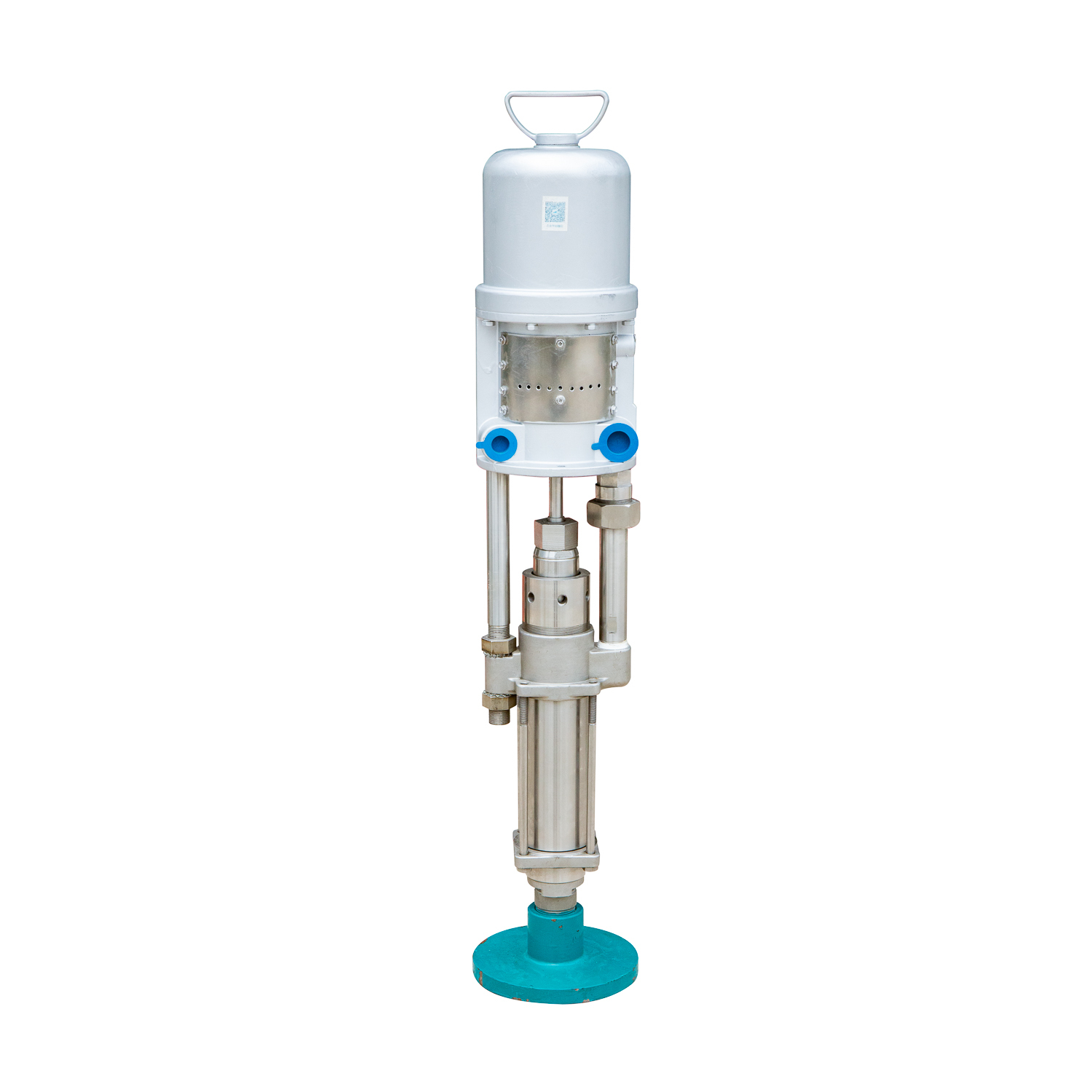

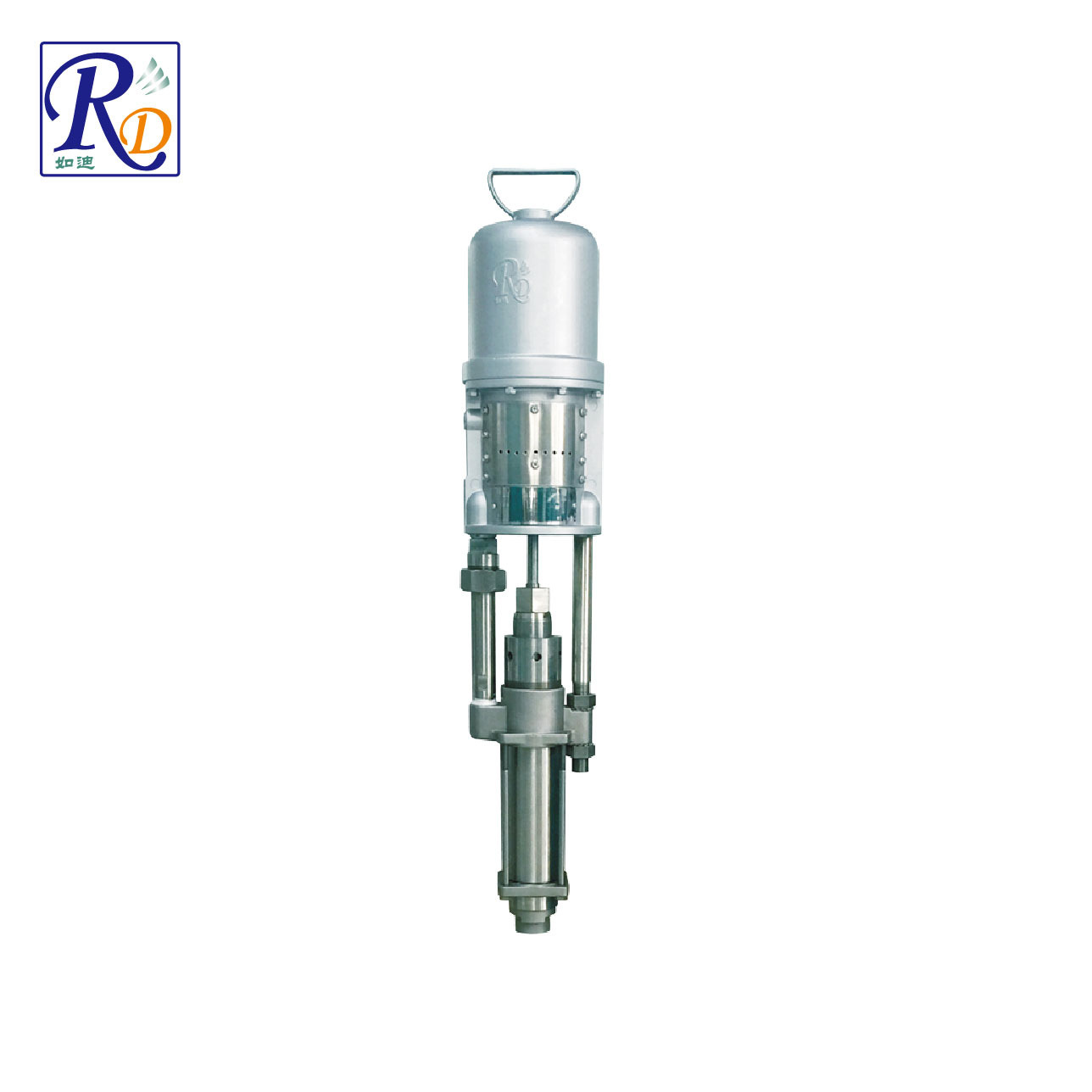

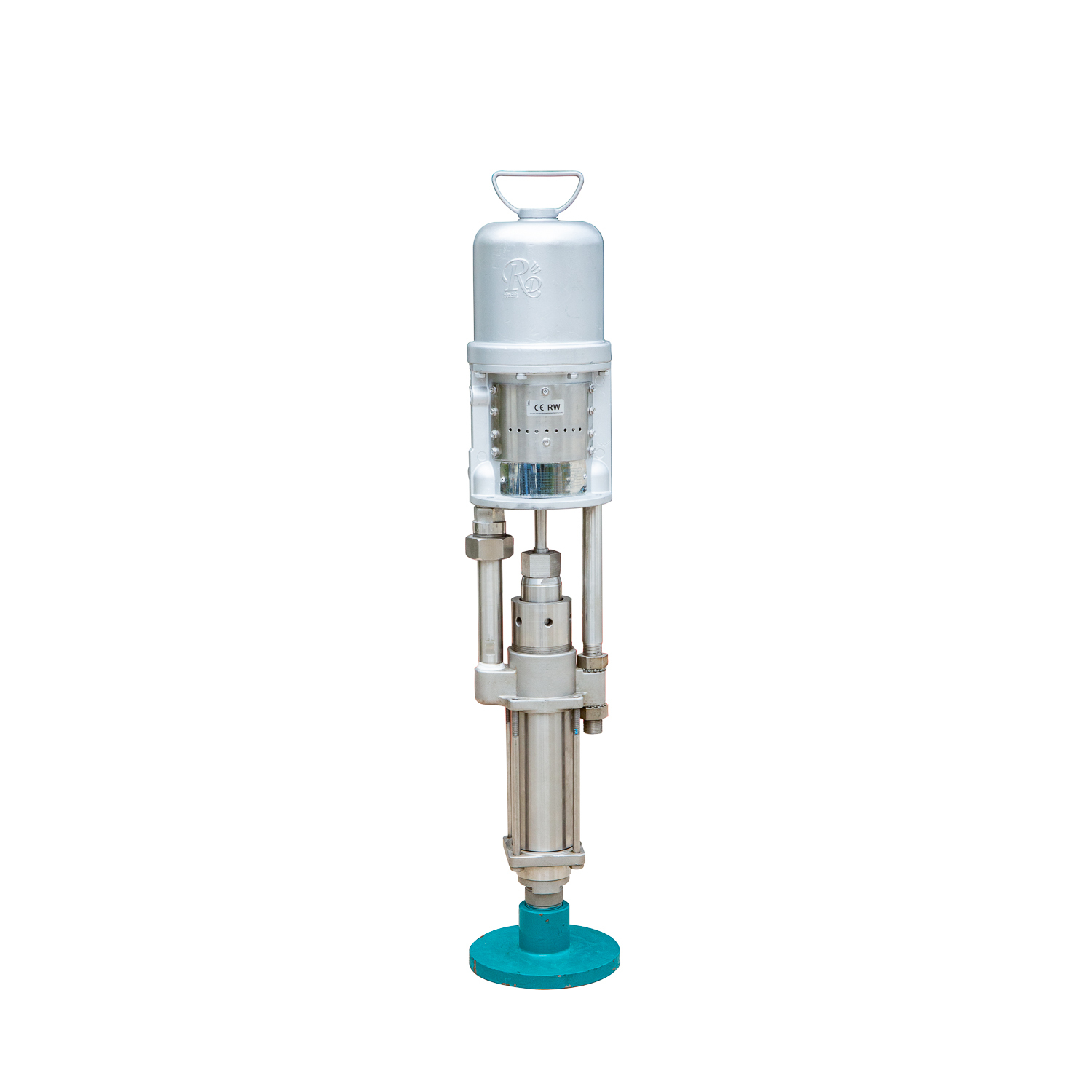

Model RD4:1 Pneumatic Piston Pump, 4:1 Pressure Ratio

  • Model RD4:1 Pneumatic Piston Pump, 4:1 Pressure Ratio
  • Model RD4:1 Pneumatic Piston Pump, 4:1 Pressure Ratio
  • Model RD4:1 Pneumatic Piston Pump, 4:1 Pressure Ratio
Brand Name RD
Model Number RD4:1
Minimum Order Quantity 1
Price 100-10000
Packaging Details Wooden Case
Delivery Time 5-8 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union
Product Details
You can tick the products you need and communicate with us in the message board.
Max flow rate 18gpm(38lpm)
Max .suction Lift 6m
Max Particle Allowed 3.0mm
Max Air Consumption 34scfm(0.817m³/min)
Air Inlet size 1/2in.npt(f)1/4in.bsp(f)
Fluid Inlet size 1-1/2in.npt(f)1/4in.bsp(f)
Connection Type Female Thread /Flange
Body Material SS304/SS316
Ratio 4:1
Leave a Message
Max flow rate 18gpm(38lpm)
Product Description

4:1 Pneumatic Piston Pump

Product Use

Widely used in paints, adhesives, polyurethane coatings, automotive coatings, architectural coatings, oil transportation, chemical, food, pharmaceutical and other industries. It is perfectly suited for viscous liquids, corrosive liquids, as well as liquids mixed with solid particles or air bubbles. With broad material compatibility, the pump features simple installation and effortless maintenance.

Product Advantages

  1. The stainless steel body is finely polished and professionally surface-treated, bringing no chemical contamination to conveyed media.
  2. Excellent performance for diverse high-viscosity fluids and outstanding corrosion resistance.
  3. Fewer wearing parts greatly lower long-term maintenance costs.
  4. Superior mechanical performance ensures long service life.
