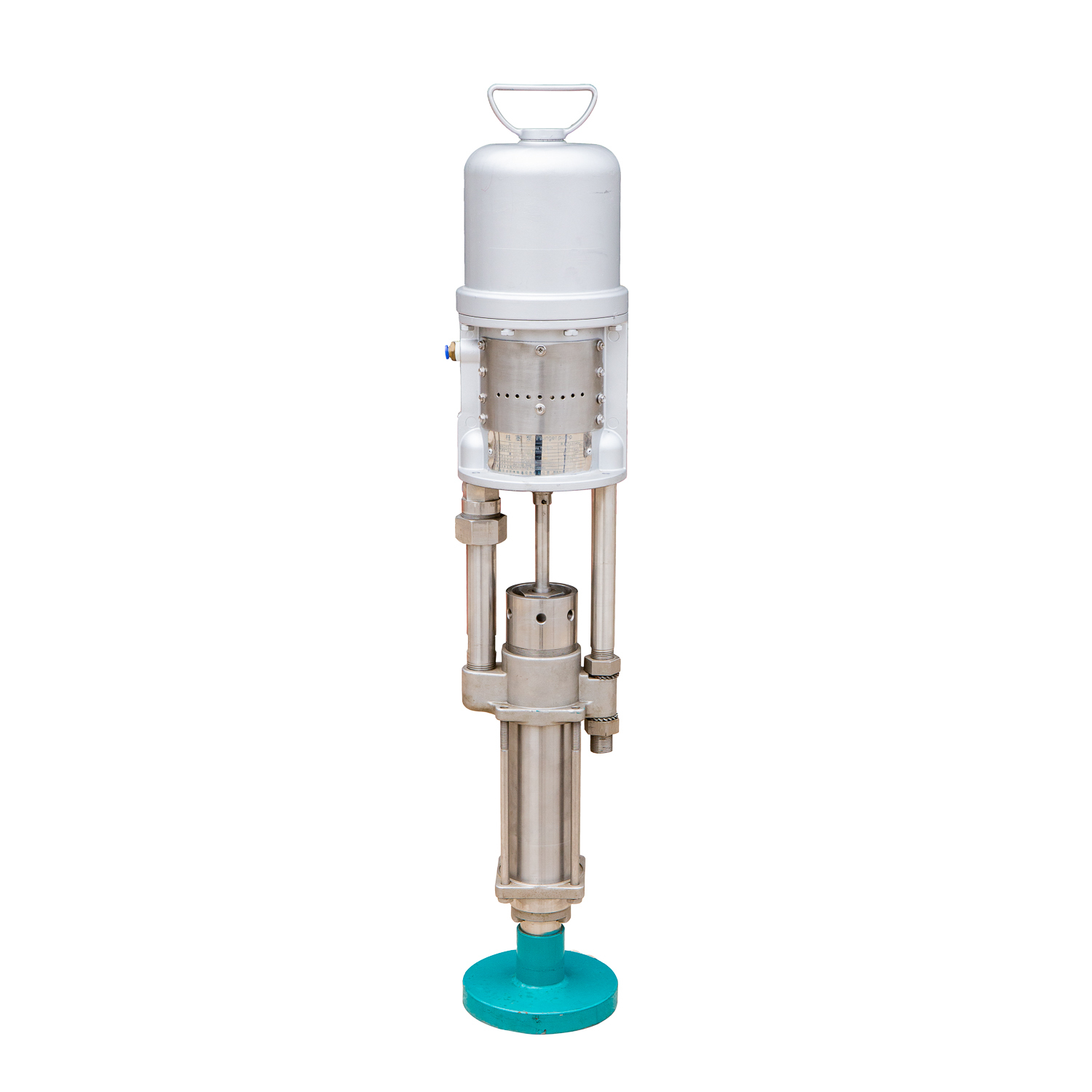

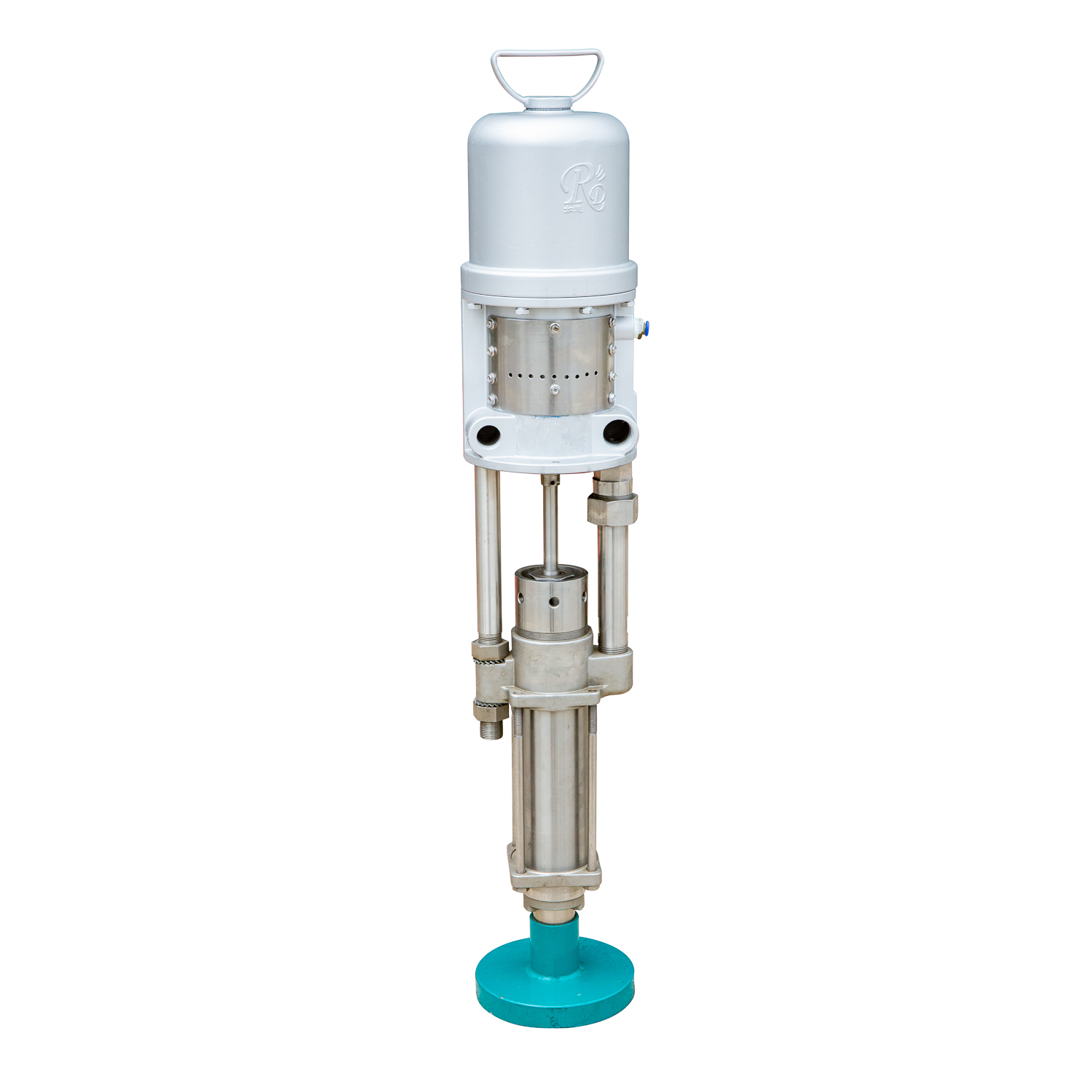

RD 5:1 Viscous Fluid Pneumatic Piston Pump
| Brand Name | RD |
|---|---|
| Model Number | RD5:1 |
| Minimum Order Quantity | 1 |
| Price | 100-10000 |
| Packaging Details | Wooden Case |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 1pcs |
Product Details
You can tick the products you need and communicate with us in the message board.
| Max flow rate | 50gpm(189lpm) | |
|---|---|---|
| Max Suction Lift | 6m | |
| Max Particle Allowed | 3.0mm | |
| Max.Air Consumption | 34scfm(0.817m³/min) | |
| Air Inlet size | 1/2in.npt(f)1/4in.bsp(f) | |
| Fluid Inlet Size | 1-1/2in.npt(f)1/4in.bsp(f) | |
| Fluid Outlet Size | 1in.npt(f)1/4in.bsp(f) | |
| Connection | Female Thread /Flange | |
| Body Material | SS304 SS316 | |
| Ratio | 5：1 |
Product Description
Product Use
This 5:1 pneumatic piston pump is extensively applied across multiple industrial sectors, including paint and adhesive production, polyurethane coating, automotive finishing, architectural coating, petroleum transportation, fine chemical, food and pharmaceutical industries. It delivers stable and reliable conveying performance for challenging media, such as high-viscosity fluids, corrosive liquids, and liquids mixed with solid particles or air bubbles. Featuring versatile material adaptability, the pump requires only simple installation and allows for easy daily maintenance, greatly improving overall operational efficiency.
Product Advantages
1. The pump’s stainless steel flow passage adopts precision polishing and advanced surface treatment technology, ensuring pure conveying process without causing any chemical deterioration or contamination to the transported materials.
2. It boasts powerful conveying capacity for various high-viscosity media and features excellent acid and alkali corrosion resistance, adapting to complex and harsh working conditions.
3. Optimized structural design reduces wearing and consumable parts, effectively lowering daily maintenance frequency and overall operating costs for long-term use.
4. Adopting high-strength mechanical configuration, the pump runs stably with low failure rate and achieves an ultra-long mechanical service life.
